CROSS X3
Off-Road Trailers

CROSS X3

Configure Now

General Features

Detail 0
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Detail 10
Detail 11
Detail 12
Thumb 0 Thumb 1 Thumb 2 Thumb 3 Thumb 4 Thumb 5 Thumb 6 Thumb 7 Thumb 8 Thumb 9 Thumb 10 Thumb 11 Thumb 12

The Vision

Ventilation forcée dans la porte
Porte d'entrée avec double verrouillage
Poignée de maintien robuste pour un accès facile
**Raccordement d'eau fraîche** verrouillable pour réservoir de 105 litres
**Raccordement de douche extérieure** avec mitigeur
Réservoir d'eaux grises 60 litres avec robinet de vidange (optionnel)
Quatre béquilles stabilisatrices AL-KO de 500 kg pour charges lourdes
Moustiquaires avec occultation sur les fenêtres latérales
Fenêtres de caravane en plastique (optionnel)
**Portes de chargement latérales verrouillables**
**Pneus 245/75 R17 MT** sur jantes en alliage tout-terrain
**Pneus 245/75 R17 BF-Goodrich All Terrain** sur jantes en alliage tout-terrain (optionnel)
Châssis de remorque entièrement galvanisé
Revêtement par poudre électrostatique sur tout le corps

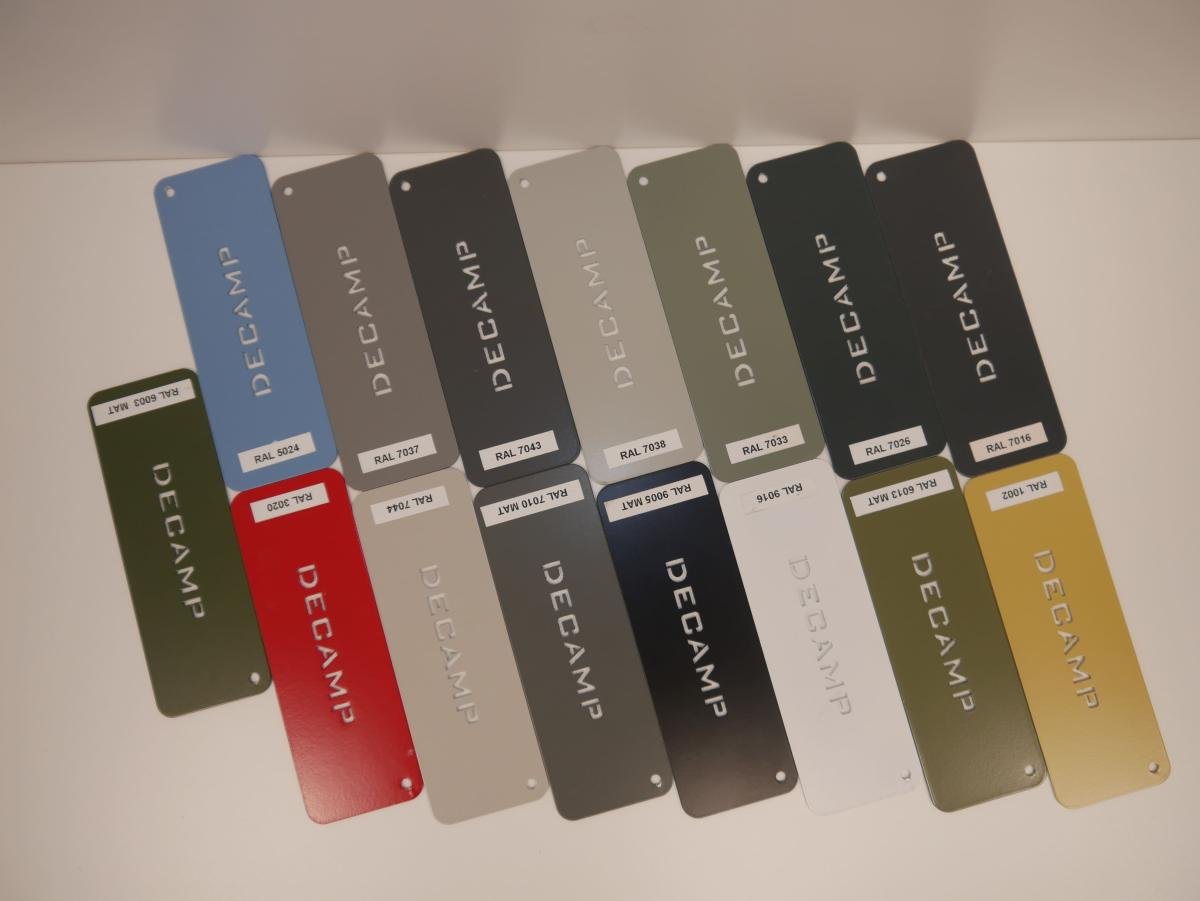

Choix de couleurs = RAL 1002 Jaune sable, RAL 7010 Gris tente, RAL 7037 Gris poussière, RAL 7043 Gris trafic
**Roue de secours** (optionnel)

Body & Chassis

The basic equipment already includes everything you need for a comfortable and safe travel experience:

Fully welded aluminum construction
Large rear door with gas struts and secure locking system
Lockable storage compartments
Windows with blackout system and protective mesh
Stable ladders and access step
LED lighting for interior and exterior
Strong support legs for stability on any terrain

This solid base ensures that you are ready for adventure from the very first trip.

Energy & Power

Energy Source

The camper is prepared for independent travel with efficient and flexible energy solutions:

Optional solar panel system (2 × 210W)
Designed for off-grid use without external power supply
Roof rails for additional equipment or upgrades

This setup allows you to stay self-sufficient and enjoy complete freedom, even in remote locations.

Climate & Comfort

Comfort Features

Despite its rugged offroad design, the camper offers a high level of comfort:

Convertible seating area with large sleeping space (208 × 187 cm)
Interior height of 187 cm, extendable up to 302 cm
Bright and functional interior layout
Practical storage solutions
Easy access with step and handles

Every detail is designed to make your travel experience comfortable and enjoyable.

Accessories

Accessories

Additional accessories allow you to customize the camper according to your needs:

Awning system (Thule / Fiamma optional)
Outdoor shower with water system
Fresh water tank (115 L) and grey water tank (75 L)
Additional storage and mounting options
Extended off-grid and comfort upgrades

With these options, you can adapt your camper perfectly to your individual travel style.

Specifications & Dimensions

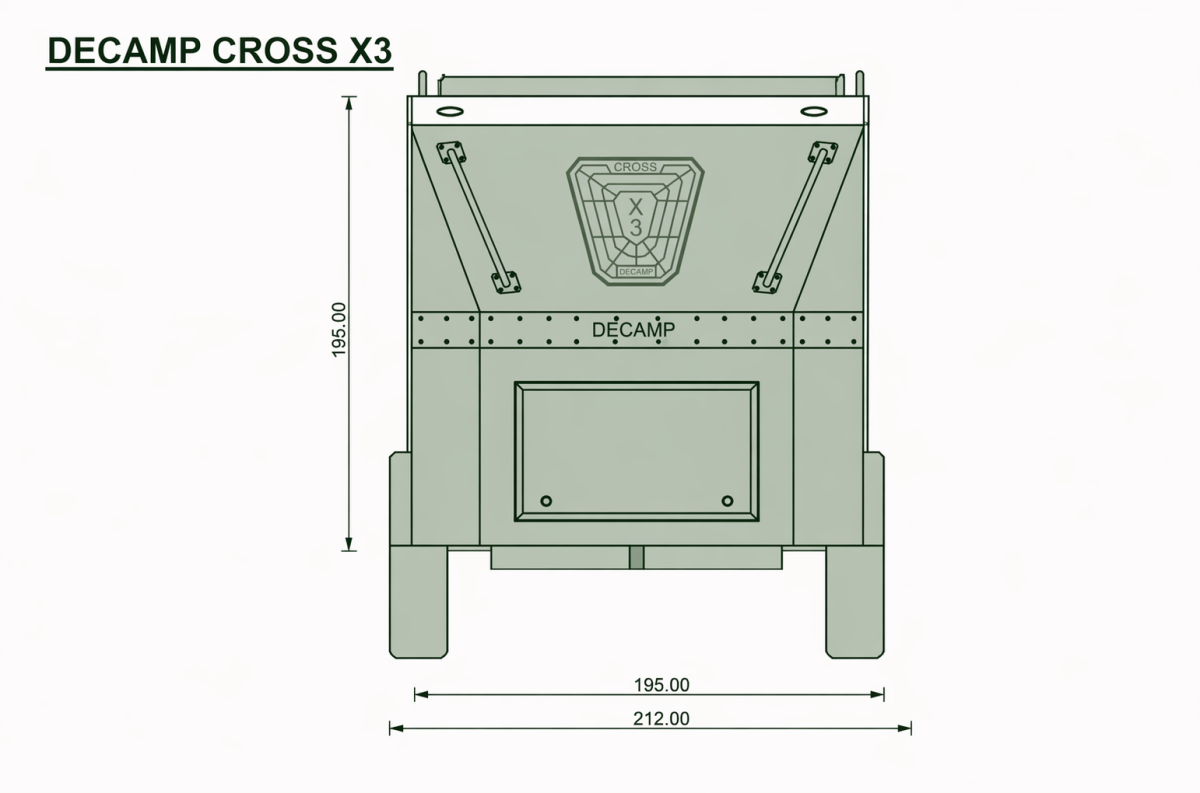

Front View

Lockable storage box
Four grab and pull handles
Front window with blackout and protective grille
Two LED work lights

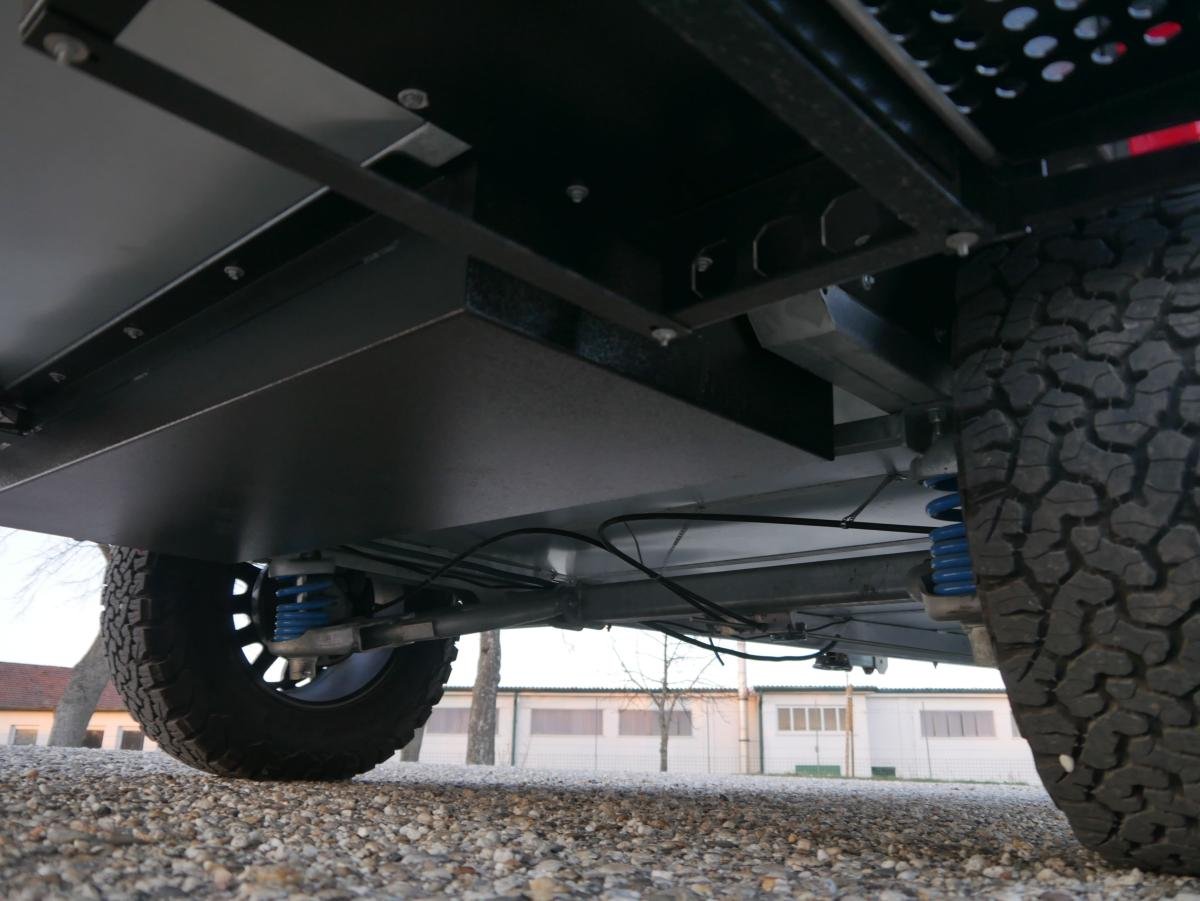

Knott independent wheel suspension
AL-KO / KNOTT overrun device
Permissible total weight 1,800 kg
120 kg maximum nose weight
Unladen weight 1,150 kg (depending on equipment)
Four 500 kg AL-KO heavy-duty stabilizer legs
Removable 300 kg KNOTT jockey wheel
13-PIN trailer socket for self-supply of trailer lighting

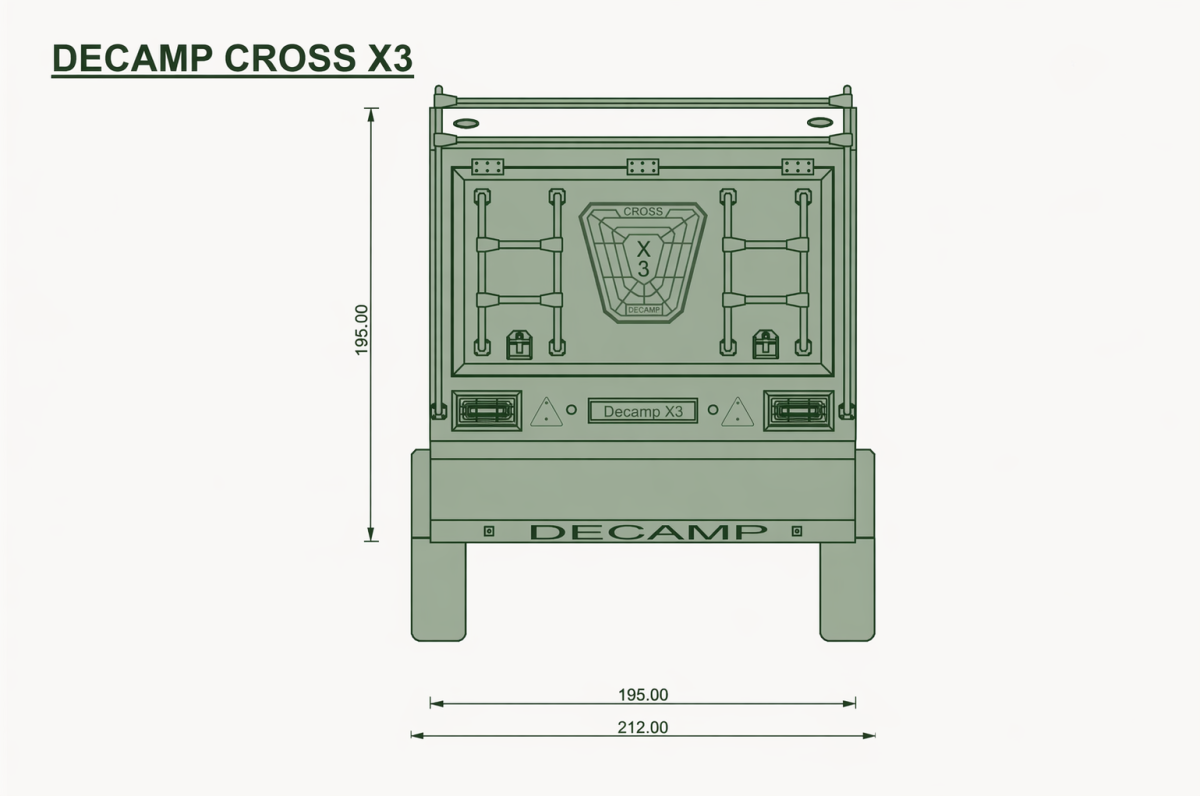

Rear View

LED trailer lighting

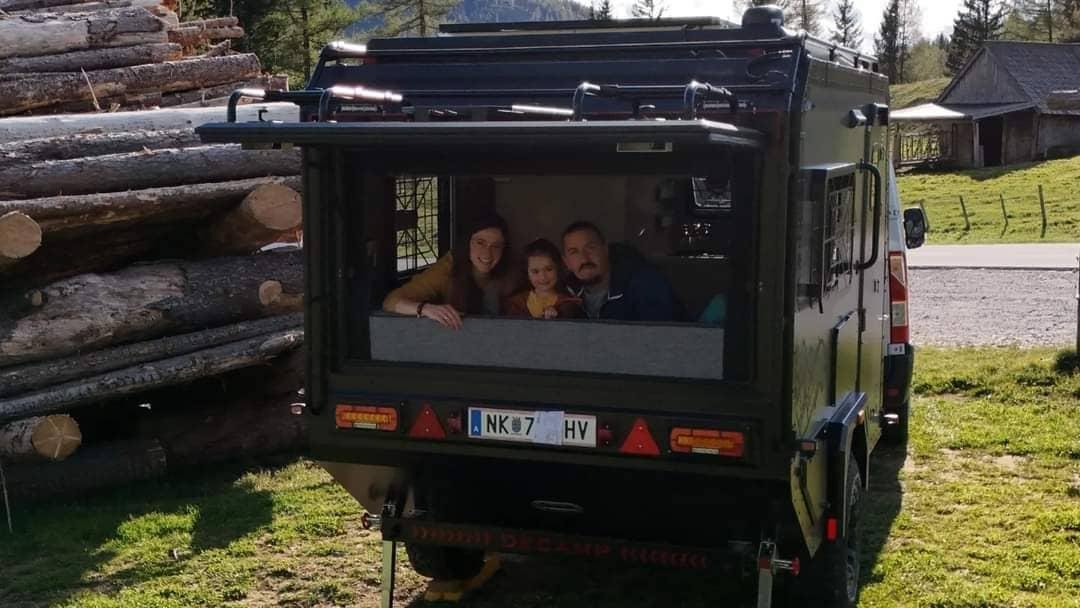

Large tailgate with gas struts and lockable latch
Two sturdy ladders
Two LED reflectors
Rear bumper with fastening eyes
Bicycle carrier or spare wheel on the tailgate (optional)
Knott independent wheel suspension
Four 500 kg AL-KO heavy-duty stabilizer legs
Fully galvanized trailer chassis

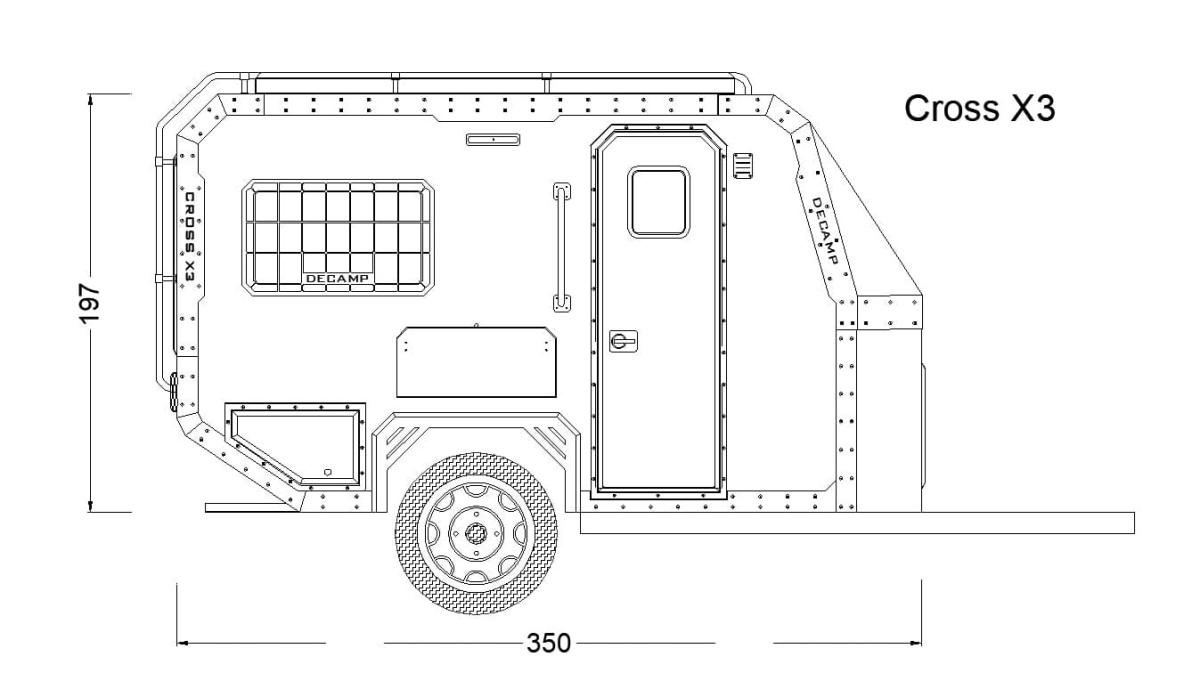

Right Side

DEFA shore power connection
Electronic fan
Entrance door with double locking incl. window and blackout
Sturdy grab handle for easier entry

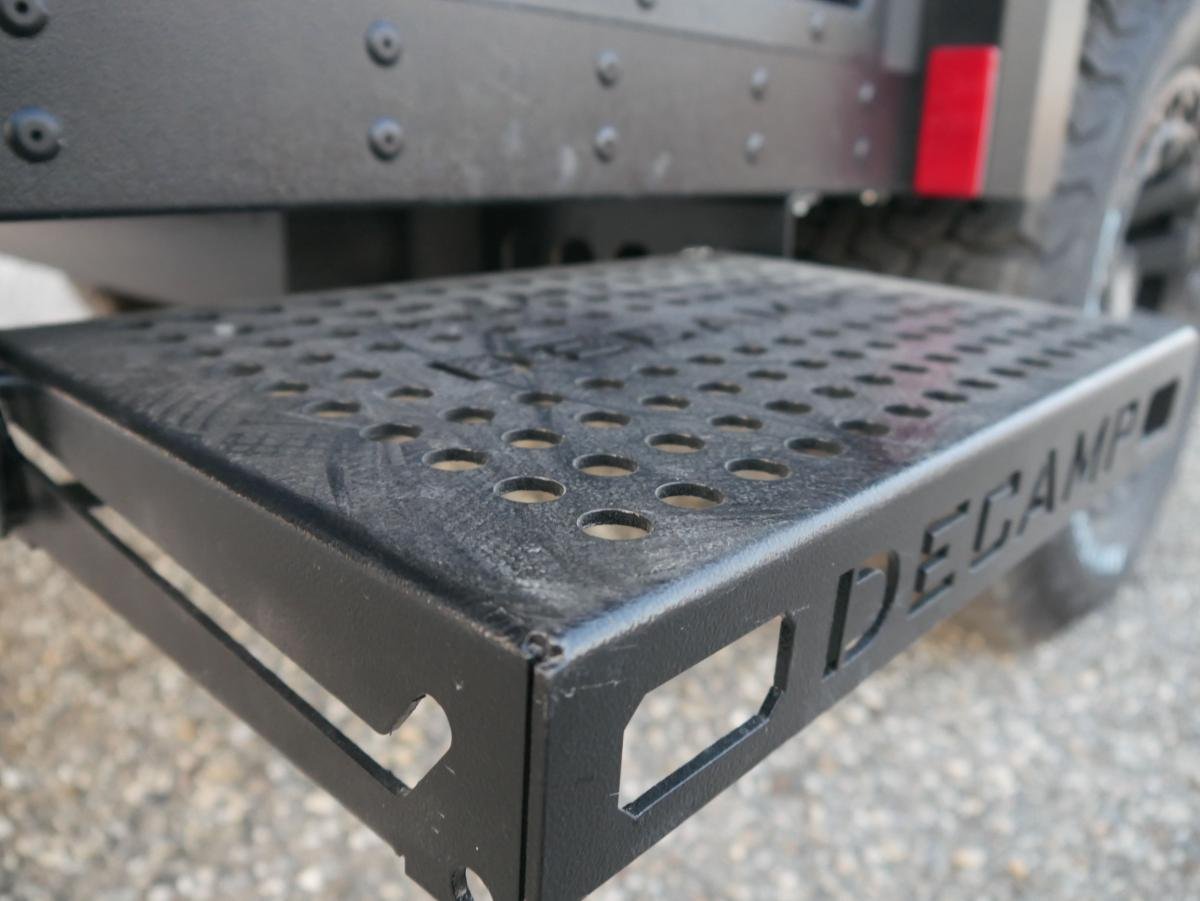

Pull-out step
LED awning lighting
Thule / Fiamma awning (optional)
Four 500 kg AL-KO heavy-duty stabilizer legs
Insect screen with blackout on side window
Plastic caravan windows (optional)
Lockable side cargo door
245/70 R17 BFGoodrich AT tires on off-road alloy rims
Fully galvanized trailer chassis
Electrostatic full-body powder coating
Color selection = RAL 1002 Sand Yellow, RAL 7010 Tent Grey, RAL 7037 Dust Grey, RAL 7043 Traffic Grey

Left Side

Sliding window for bathroom ventilation
Lockable fresh water connection for 115 liter water tank
Outdoor shower connection with mixer tap
Gray water tank 75 liters incl. drain tap (optional)
Four 500 kg AL-KO heavy-duty stabilizer legs
Insect screens with blackout on side windows
Plastic caravan windows (optional)
Lockable side cargo door
245/70 R17 BFGoodrich AT tires on off-road alloy rims
Fully galvanized trailer chassis
Electrostatic full-body powder coating
Color selection = RAL 1002 Sand Yellow, RAL 7010 Tent Grey, RAL 7037 Dust Grey, RAL 7043 Traffic Grey

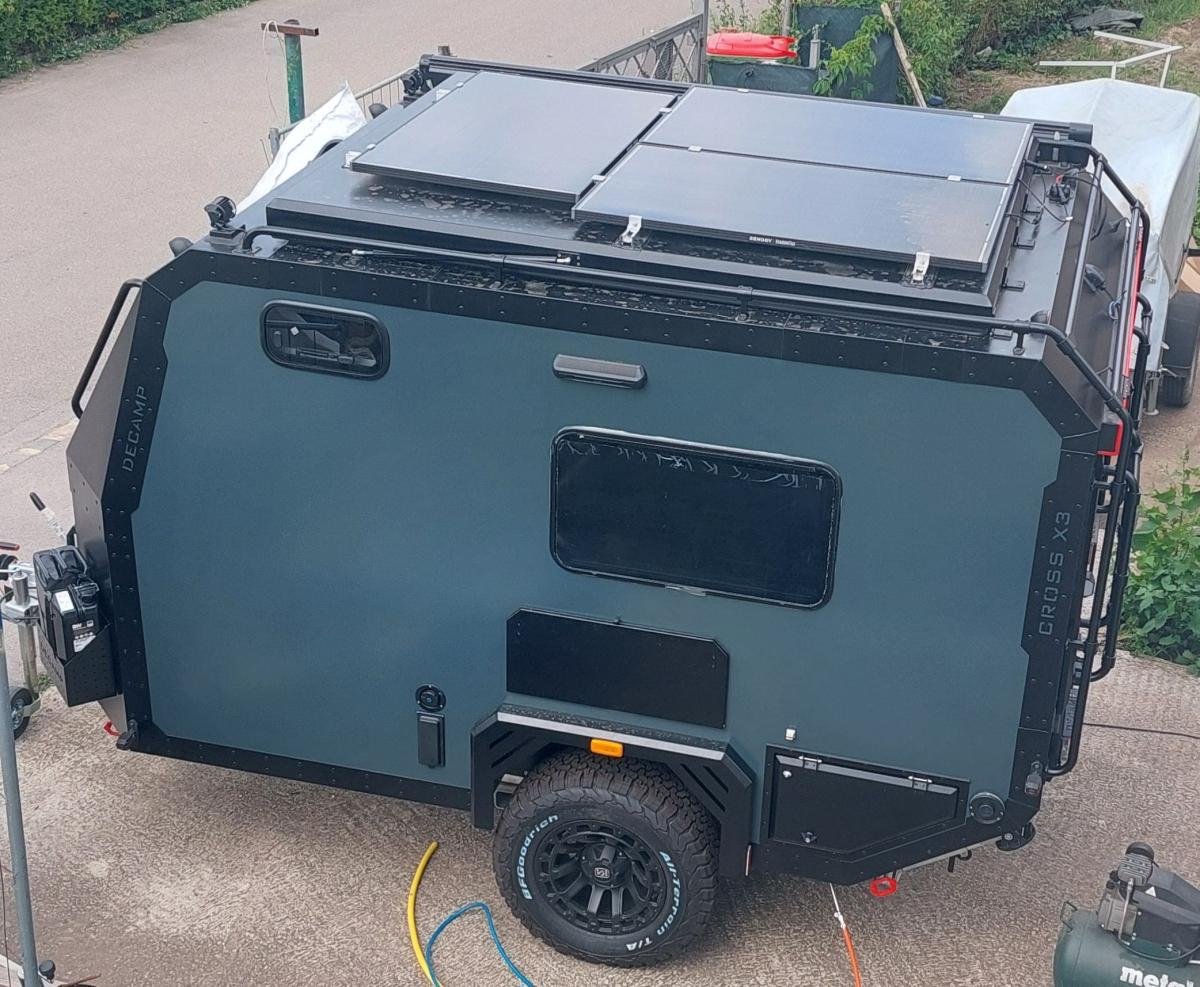

Roof

2-person bed in the pop-up roof with a sleeping area of 200 x 150 cm (optional)
40 mm ceiling insulation
2x 210 Watt photovoltaic panel (optional)
All-around roof rails

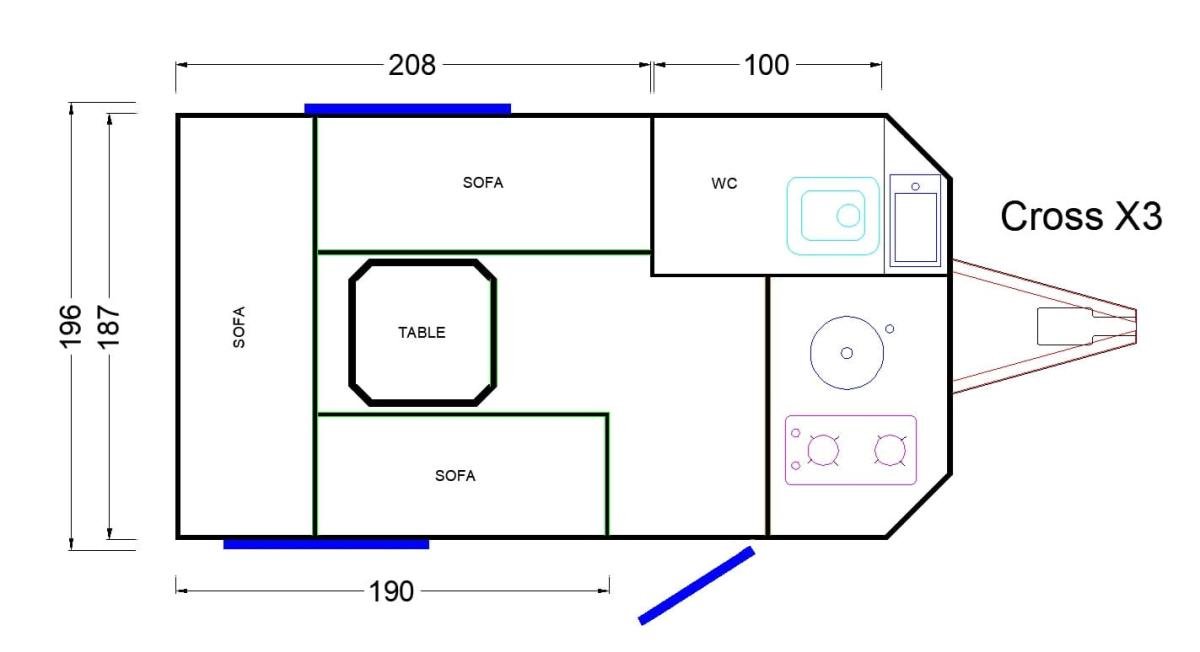

Interior

Seating area convertible to bed with a sleeping area of 208 x 187 cm
Standing height with roof closed 187 cm, with roof open up to 302 cm
2-person bed in the pop-up roof with a sleeping area of 200 x 150 cm (optional)
Swivel table
40 mm wall and ceiling insulation
Floor insulation and underbody protection (optional)
Separated bathroom/WC and kitchen area
Aluminum shower area with washbasin
Interior walls with faux leather application
LED interior lighting
Analog control panel
USB port / light switch / voltmeter / thermometer
12 V electrical installation
230 V electrical installation
115 liter fresh water tank
Pressurized water installation incl. water tank indicator
Hot water preparation (mandatory)
Hot water boiler (optional)
Insect screens with blackout on side windows
Secured cabinets
PVC floor coating
Eberspächer diesel air heater (optional)
Right Side
Interior
Right Side
Interior
Right Side
Interior
Right Side
Interior
Right Side
Interior
Right Side
Interior
