The Vision

The Decamp Cross X1+ is the most compact and maneuverable model in the Decamp lineup. With a height of only 195 cm, it fits easily into garages or carports and navigates rough terrain with ease. As a leader in the teardrop trailer class, it offers an impressive standing height of up to 240 cm thanks to its large pop-up roof. The durable KNOTT independent suspension paired with 17-inch off-road tires ensures maximum ground clearance for true off-road enthusiasts.

Two entry doors, ample storage space, and a payload of up to 430 kg allow for plenty of equipment. It is built with a sturdy aluminum frame, while the insulated interior is lined with padded artificial leather for a cozy feel.

A standout feature is the functional rear kitchen, which provides a great space for cooking under the large awning. The interior can be quickly converted into a 205 x 150 cm sleeping area. The upper level offers a second double bed (200 x 120 cm), accessible via integrated steps. Zippered tent walls allow light to flood in and create a seamless connection with the outdoors.

The Decamp Cross X1+ is the perfect companion for reaching the most remote locations and becoming one with nature.

Body & Chassis

AL-KO rubber torsion axle with 1,350 kg permissible total weight
100 kg maximum nose weight
Unladen weight 920 kg (depending on equipment)
Payload up to 430 kg
AL-KO / KNOTT braked overrun device
Removable 300 kg KNOTT jockey wheel
Four 500 kg AL-KO heavy-duty stabilizer legs
Fully galvanized trailer chassis
Electrostatic full-body powder coating
Color selection = RAL 1002 Sand Yellow, RAL 7010 Tent Grey, RAL 7037 Dust Grey, RAL 7043 Traffic Grey
245/75 R17 MT tires on off-road alloy rims

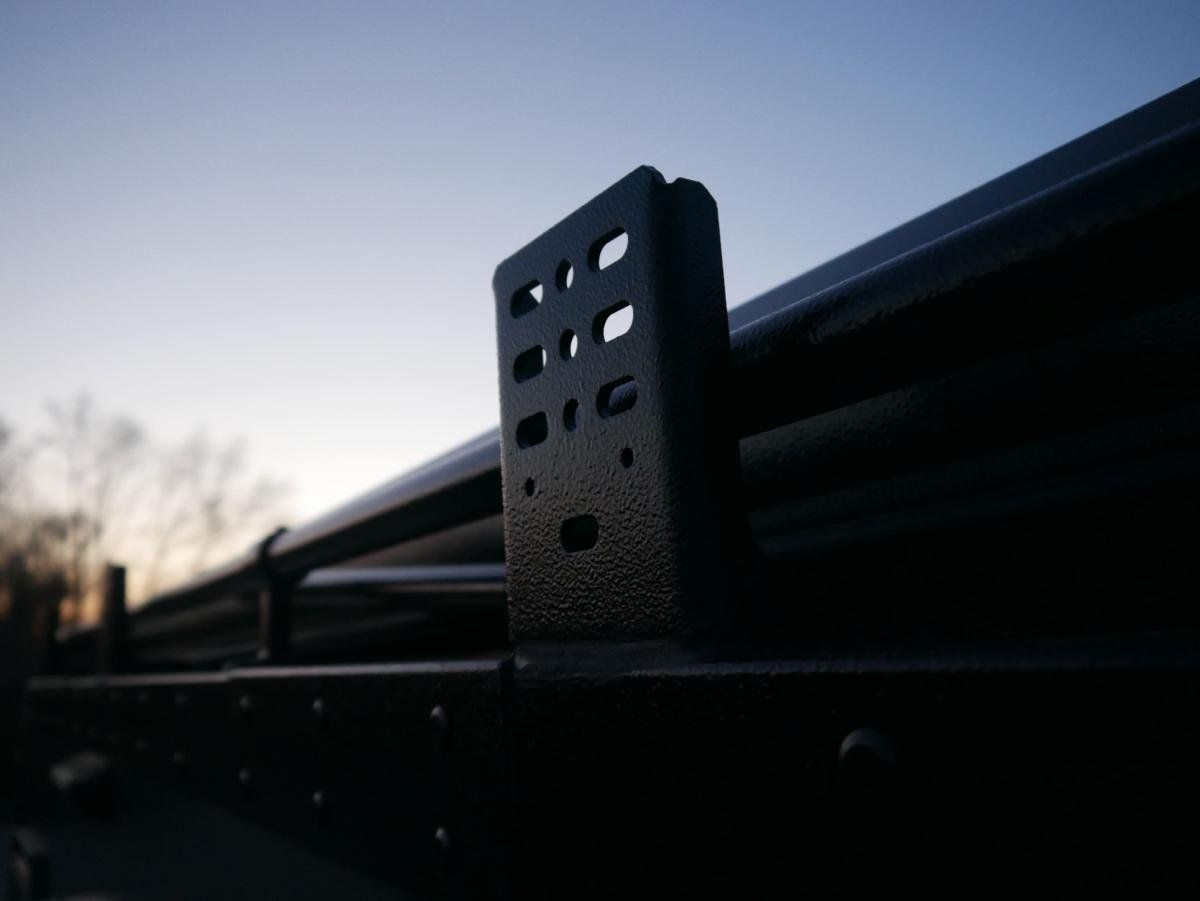

All-around roof rails
Two entrance doors with double locking
Stable grab handle for easier entry
Large tailgate with gas struts and lockable latch
Two sturdy ladders

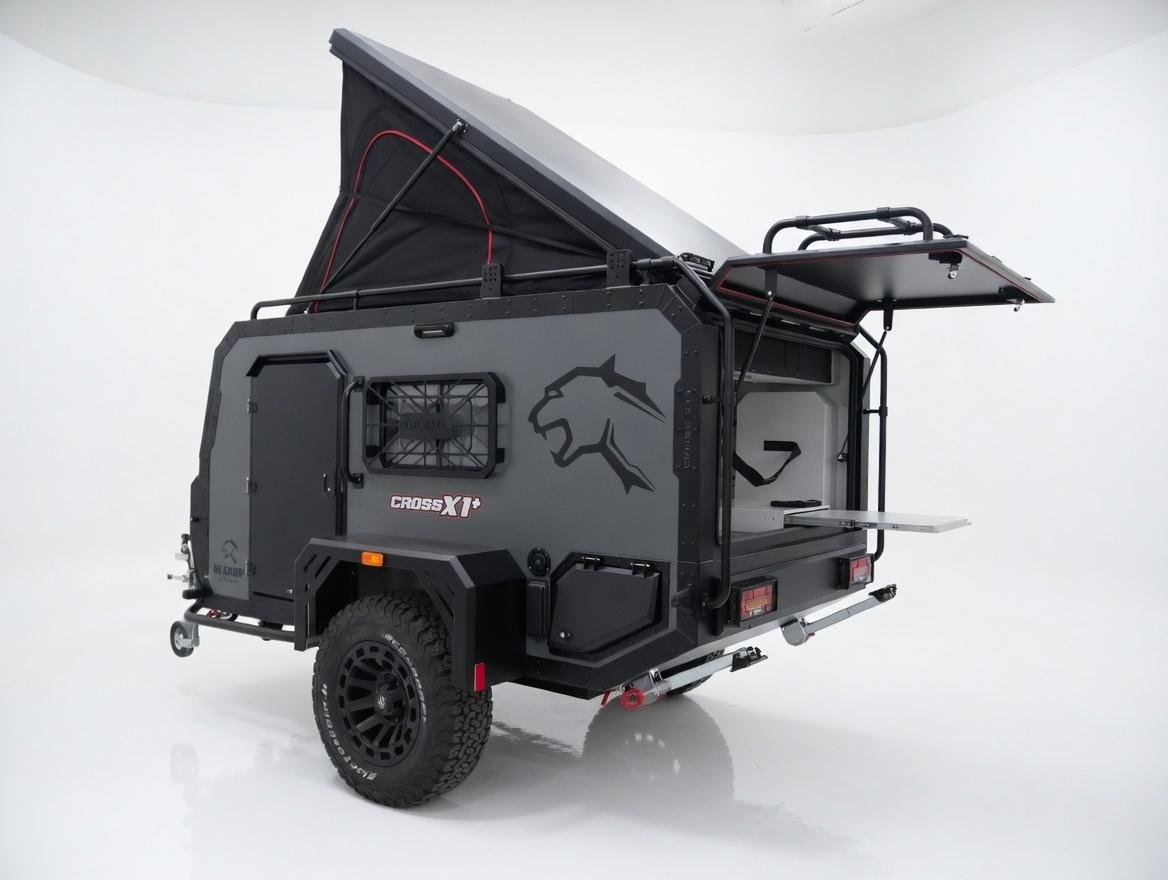

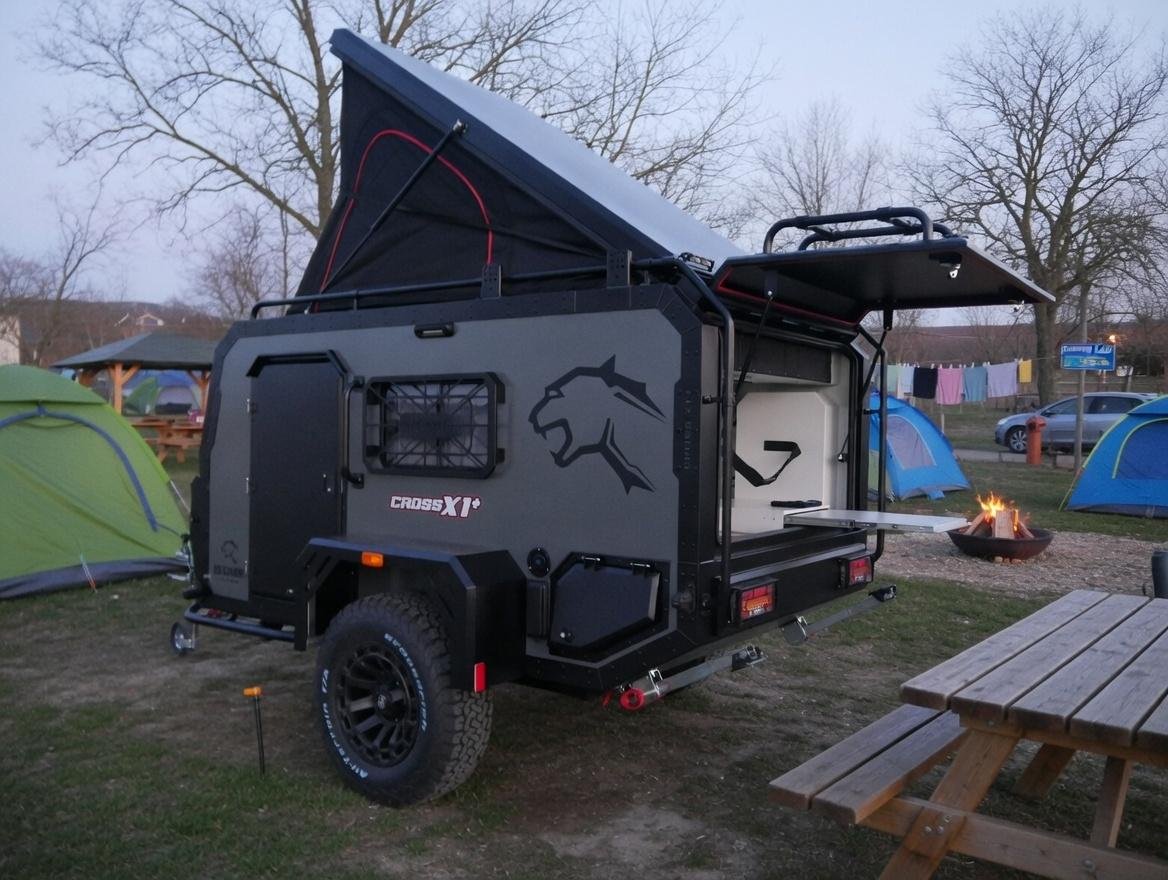

Rear kitchen with sink, pull-out, and storage compartments
Rear bumper with fastening eyes
Lockable side cargo doors
Lockable front storage box
Four grab and pull handles on the front section
Two sliding side windows with protective grilles
Insect screens with blackout on side windows
Lockable fresh water filler neck
105 liter fresh water tank
Pressurized water installation incl. water tank indicator
Hot water preparation (mandatory)
Outdoor shower connection with mixer tap
13-PIN trailer socket for self-supply of trailer lighting
LED trailer lighting
Two LED reflectors
LED awning lighting
Height with roof closed 140 cm, with roof open up to 240 cm
Sleeping area of 205 x 150 cm on 8 cm thick foam mattresses
Secured cabinets
PVC floor coating

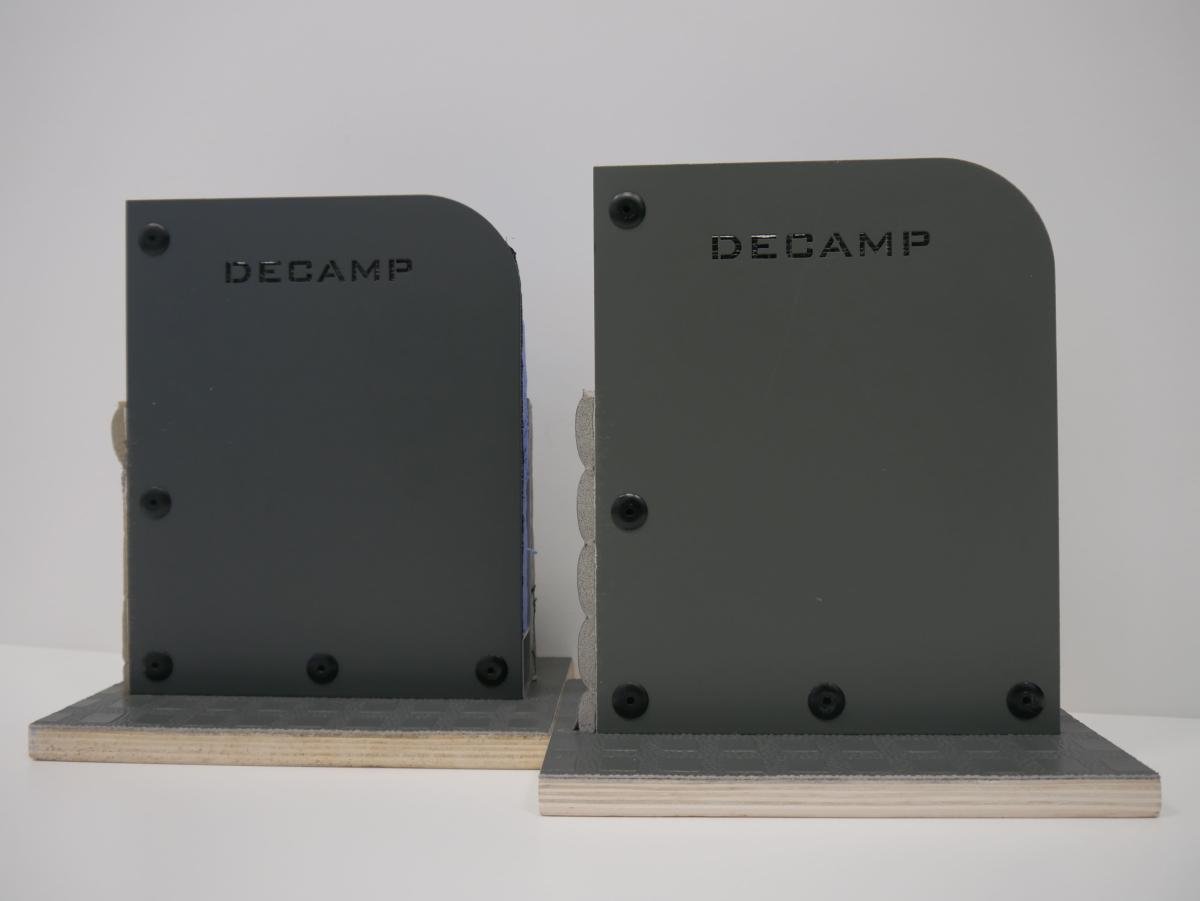

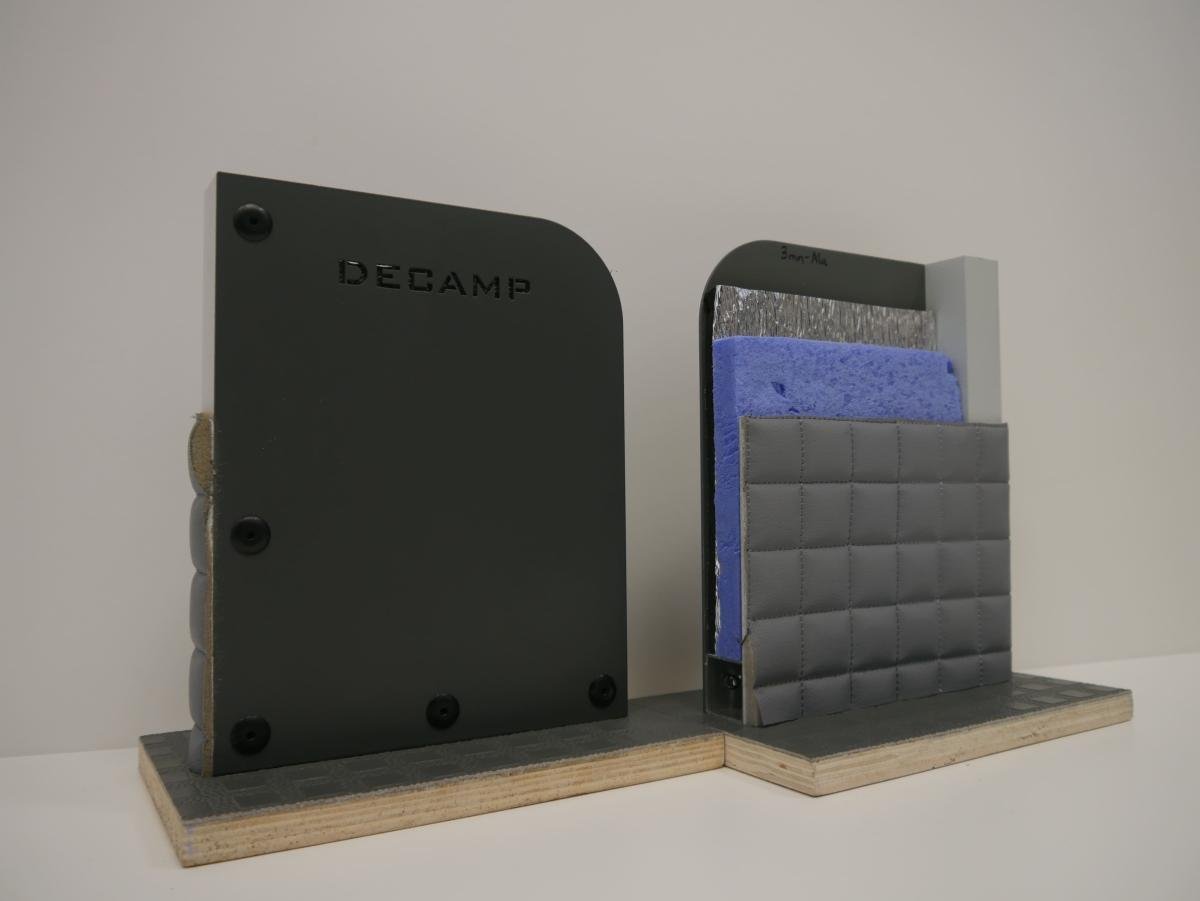

40 mm wall and ceiling insulation
Interior walls with faux leather application

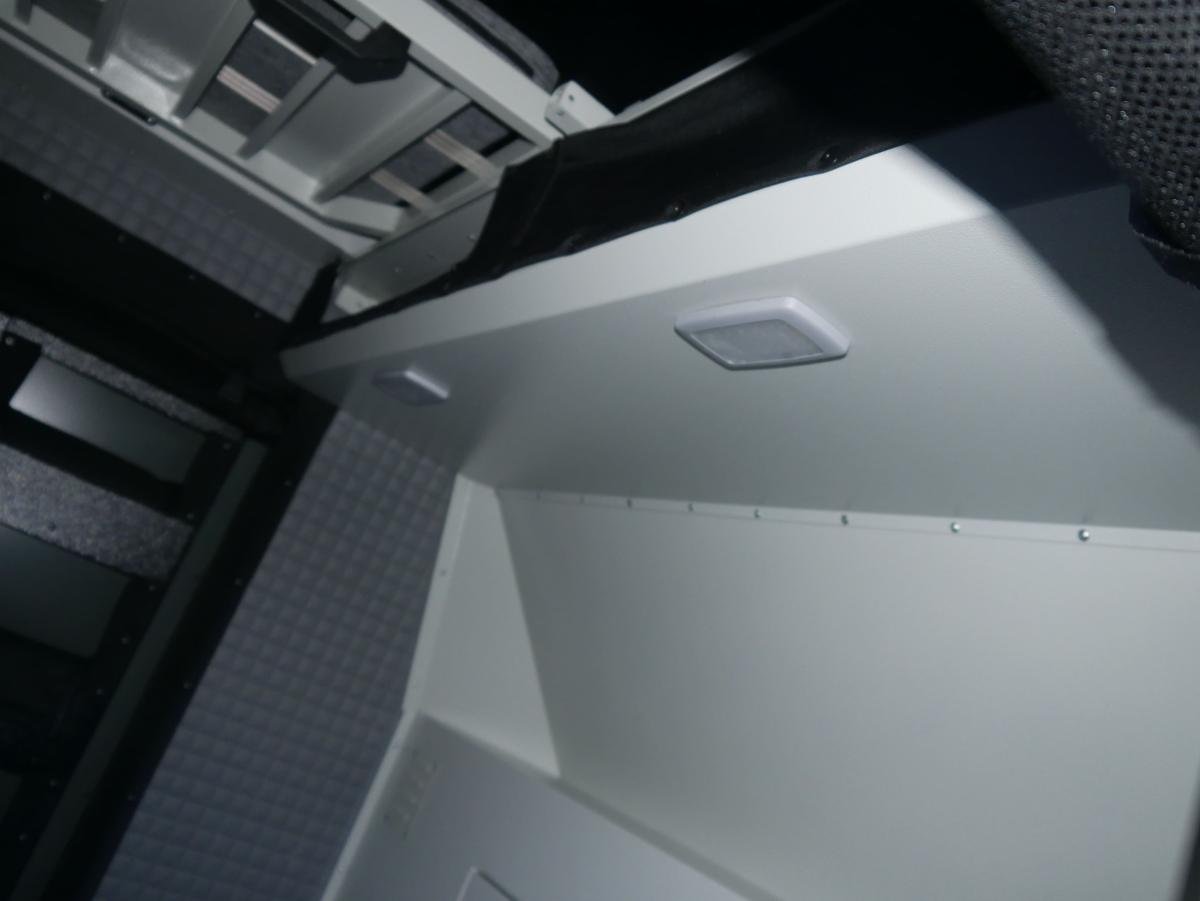

LED interior lighting
Analog control panel
USB port / light switch / voltmeter / thermometer
12 V electrical installation
230 V electrical installation
DEFA shore power connection

Energy & Power

150 Watt photovoltaic panel

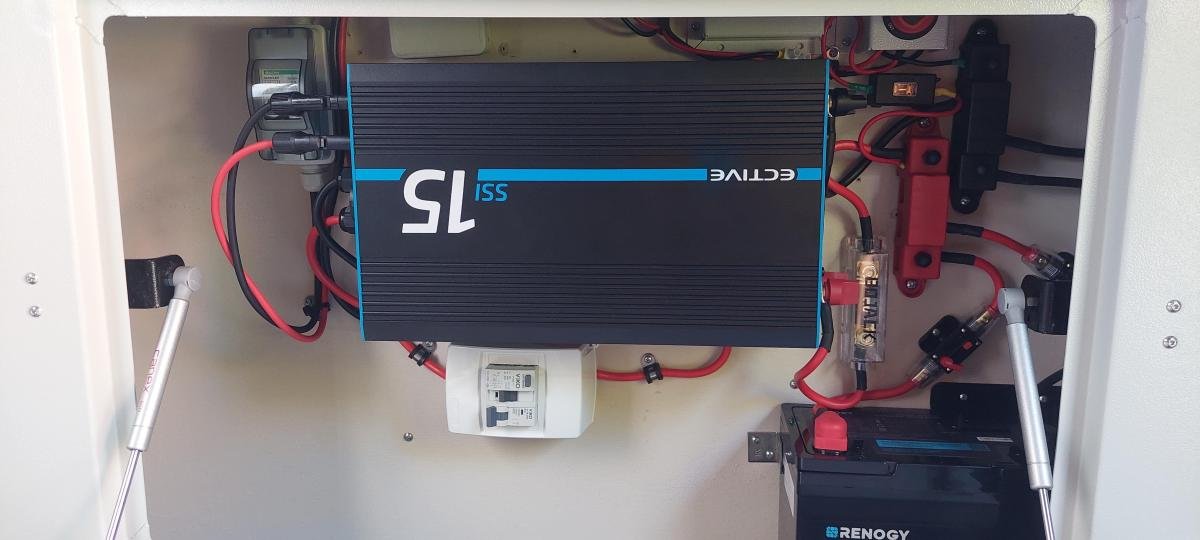

Energy Package Gel (100 Ah gel battery, 150 W photovoltaic panel, MPPT charge controller, 600 W sine wave inverter, battery charger, isolating relay)
Energy Package Lithium Standard (100 Ah LiFePO4 battery, 150 W photovoltaic panel, Victron MPPT charge controller, 1000 W sine wave inverter incl. mains priority circuit, Victron battery charger, isolating relay, additional RCD circuit breaker)
Energy Package Lithium Premium (200 Ah LiFePO4 battery, 150 W photovoltaic panel, Victron MPPT charge controller, 2000 W sine wave inverter incl. mains priority circuit, Victron battery charger, isolating relay, additional RCD circuit breaker)

Climate & Comfort

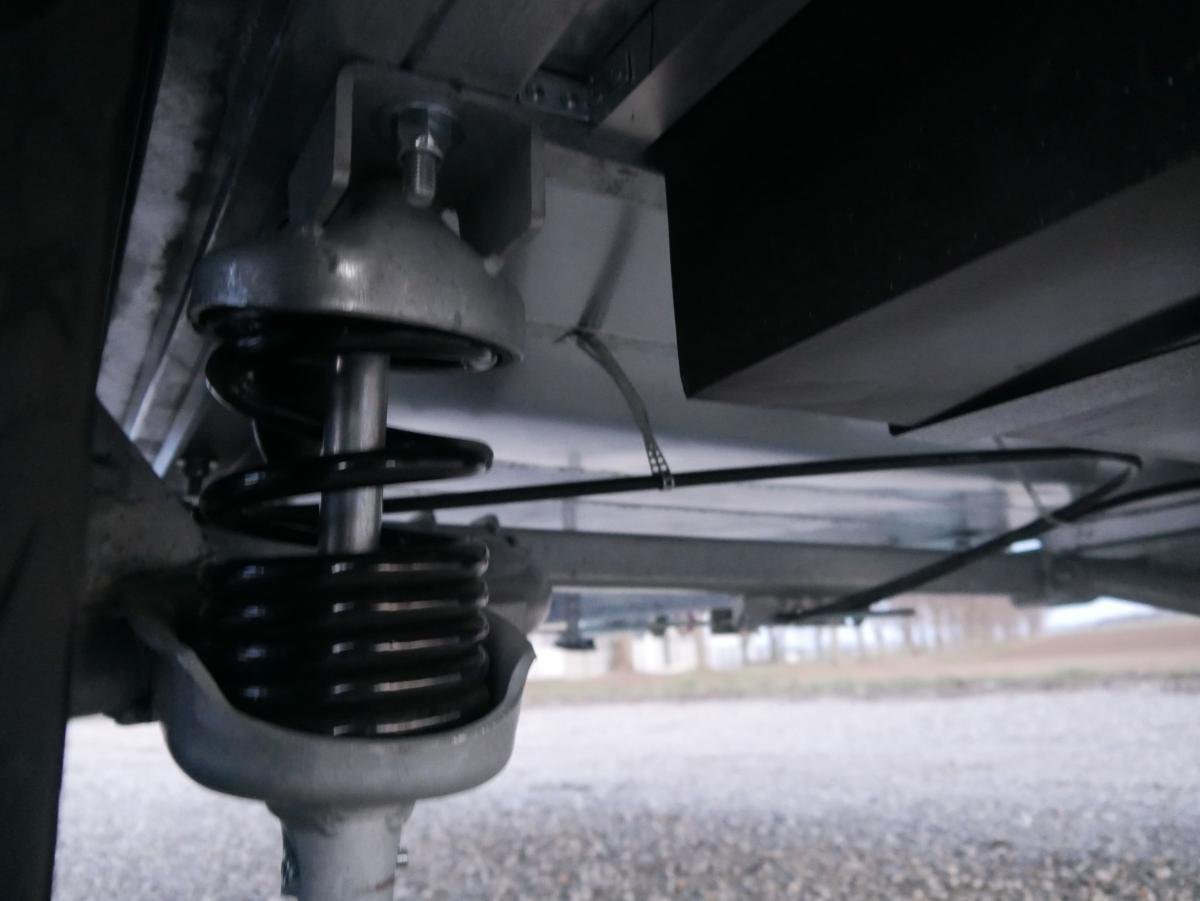

KNOTT independent wheel suspension with 1,350 kg permissible total weight (245/75 R17 MT tires)

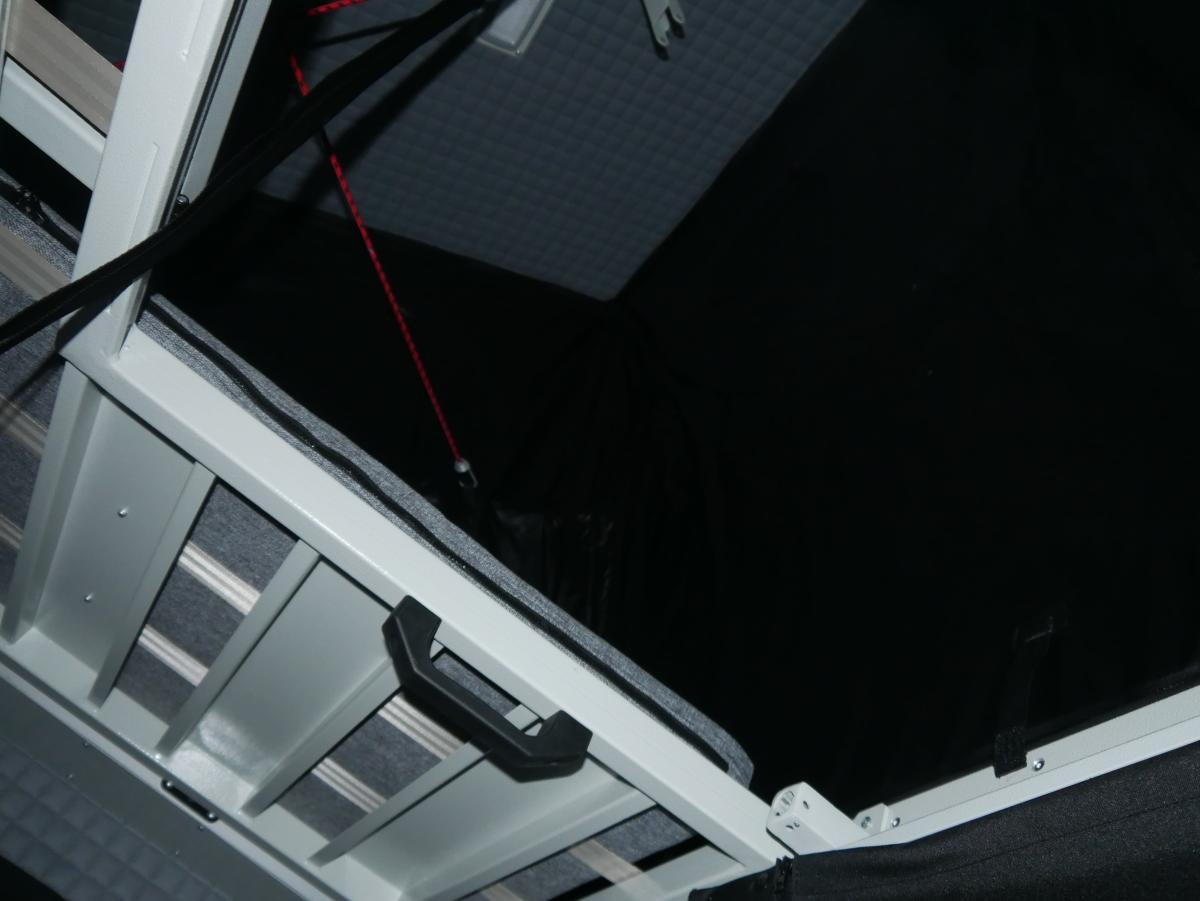

2-person bed in the pop-up roof with a sleeping area of 200 x 120 cm including steps for easier access
Child bed / bench with a sleeping/sitting area of 150 x 60 cm
Thermal insulation for the inner tent
Thule / Fiamma awning
Plastic caravan windows with insect screens and sun protection blinds
Plastic front window with insect screens and sun protection blinds
Gray water tank 60 liters
Spare wheel on the left side wall
Floor insulation and underbody protection
Hot water boiler
Eberspächer diesel air heater
Truma / Reich Mover
Insulated inner tent for the pop-up roof
BF-Goodrich All Terrain tires

Accessories

Various 12-volt compressor refrigerators
Boxio dry separating toilet
AL-KO SAFETY anti-theft device suitable for the towing device
KNOTT anti-theft device suitable for the towing device
Mover can be ordered from the factory
Individual additions or modifications possible

Specifications & Dimensions

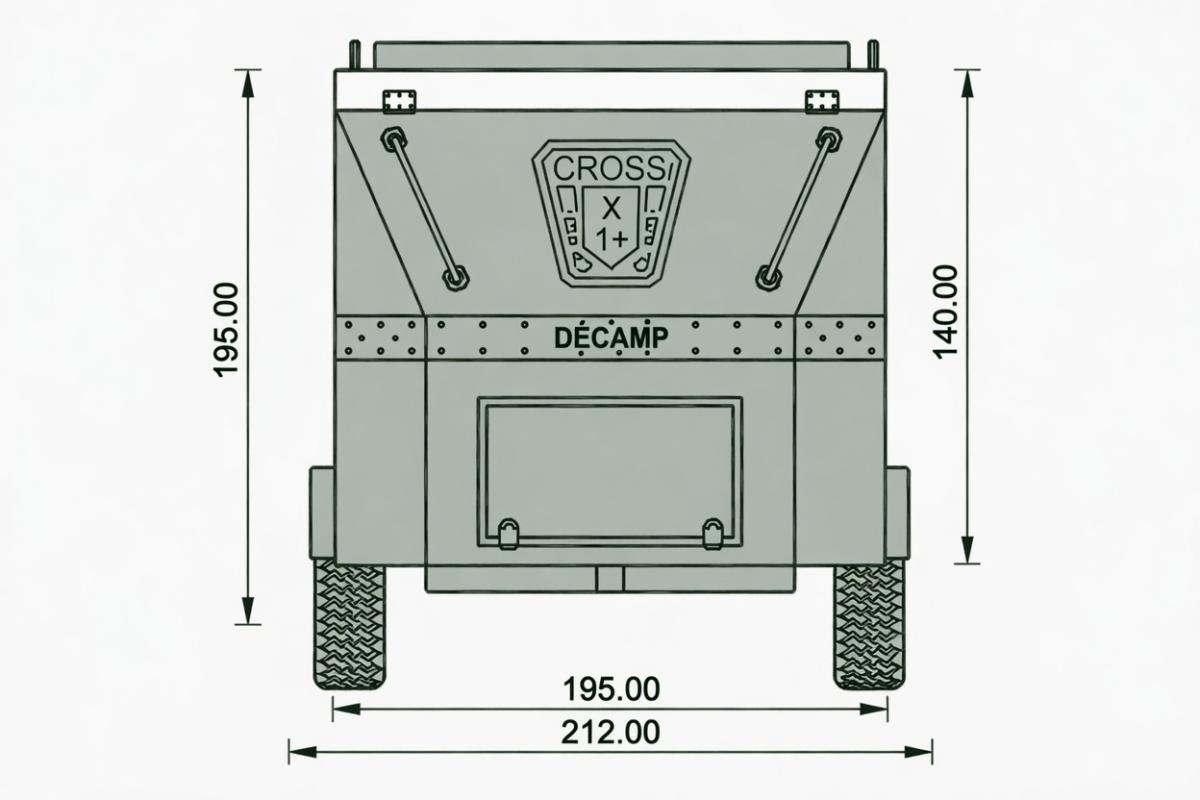

Front View

Lockable storage box
Four grab and pull handles
Front window with blackout and protective grille (optional)
Knott independent wheel suspension (optional)
AL-KO / KNOTT braked overrun device
Permissible total weight 1,350 kg
100 kg maximum nose weight
Unladen weight 920 kg (depending on equipment)
Four 500 kg AL-KO heavy-duty stabilizer legs
Removable 300 kg KNOTT jockey wheel
13-PIN trailer socket for self-supply of trailer lighting
Trailer ball head for bicycle carrier with attachment on the drawbar box (optional)

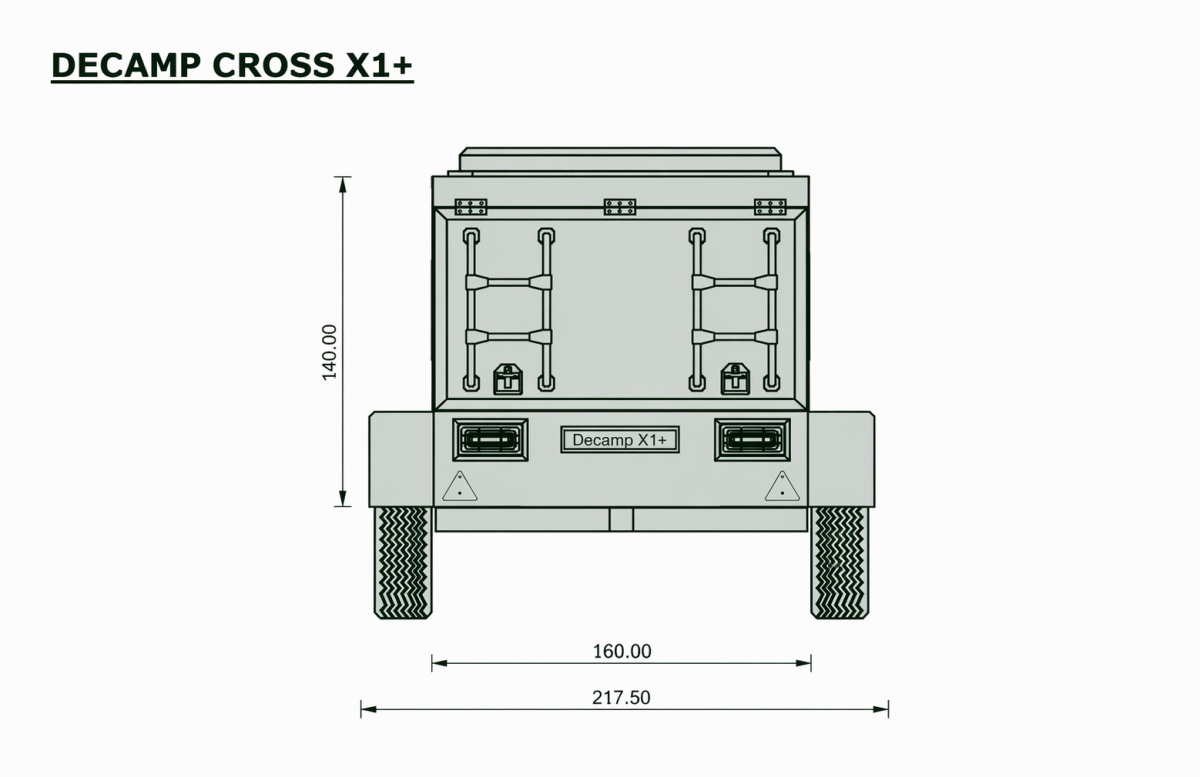

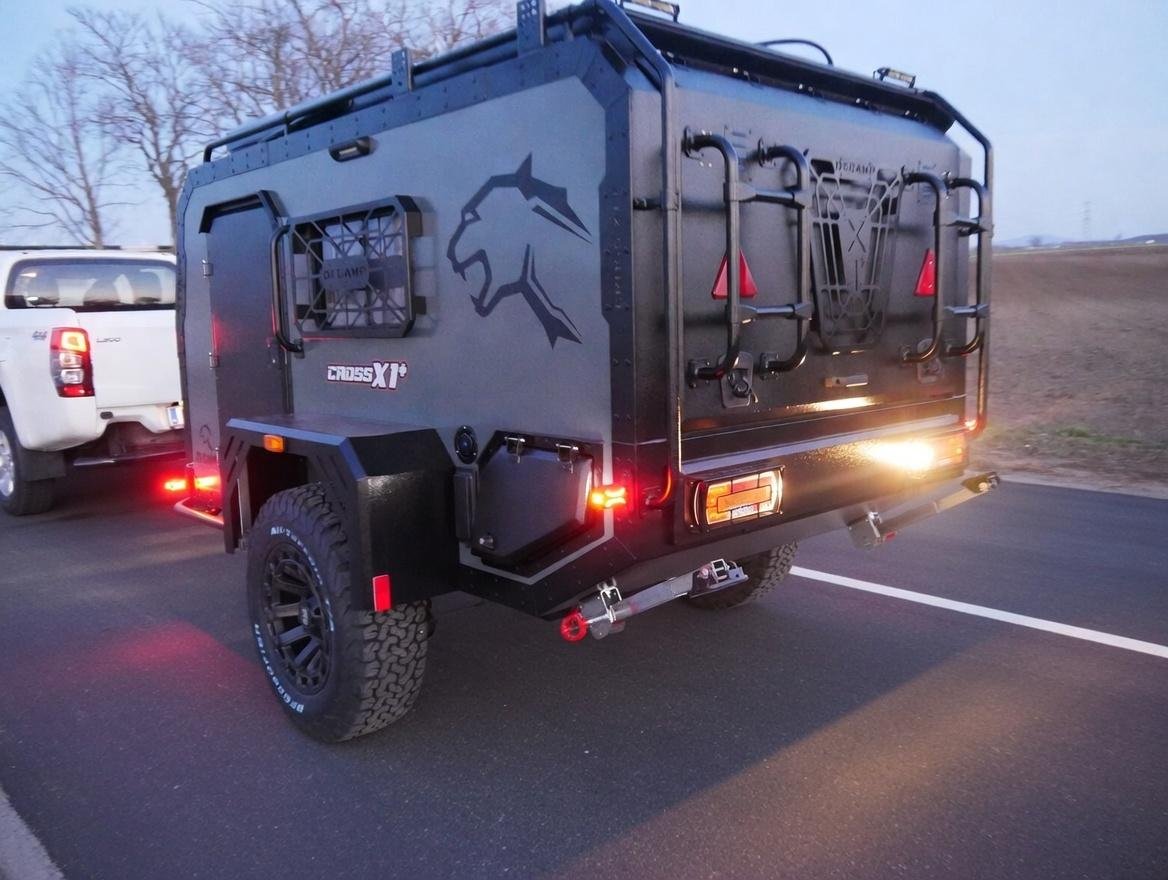

Rear View

LED trailer lighting
Large tailgate with gas struts and lockable latch
Two sturdy ladders
Rear bumper with fastening eyes
Knott independent wheel suspension (optional)
Four 500 kg AL-KO heavy-duty stabilizer legs
Fully galvanized trailer chassis

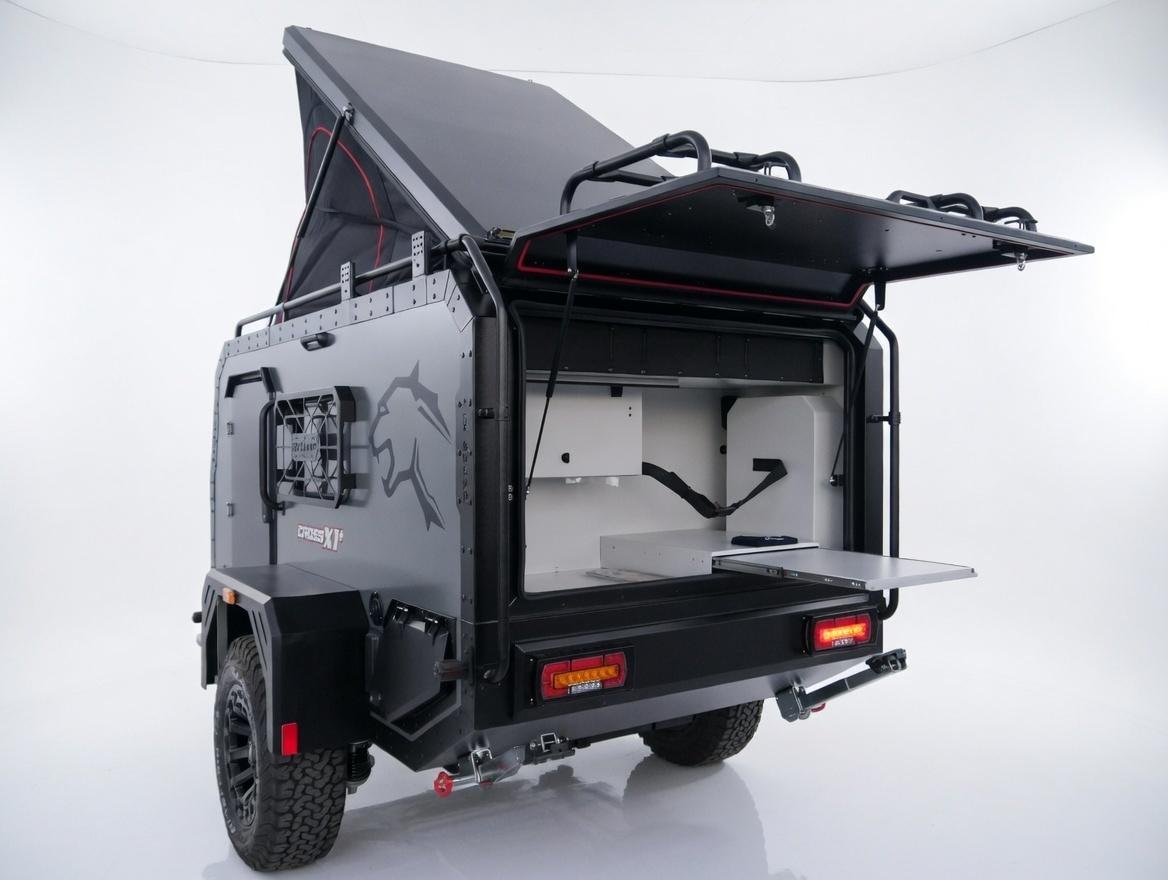

Rear kitchen with sink, pull-out, and storage compartments

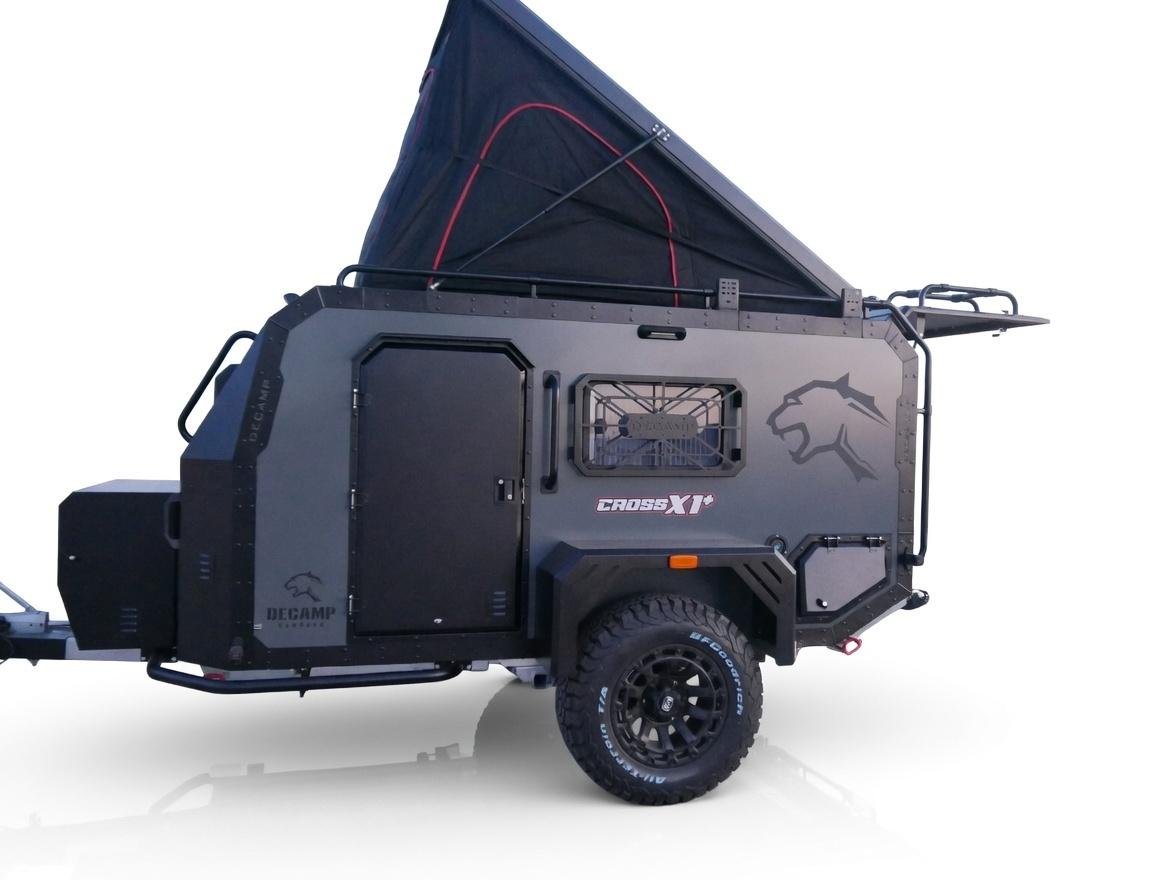

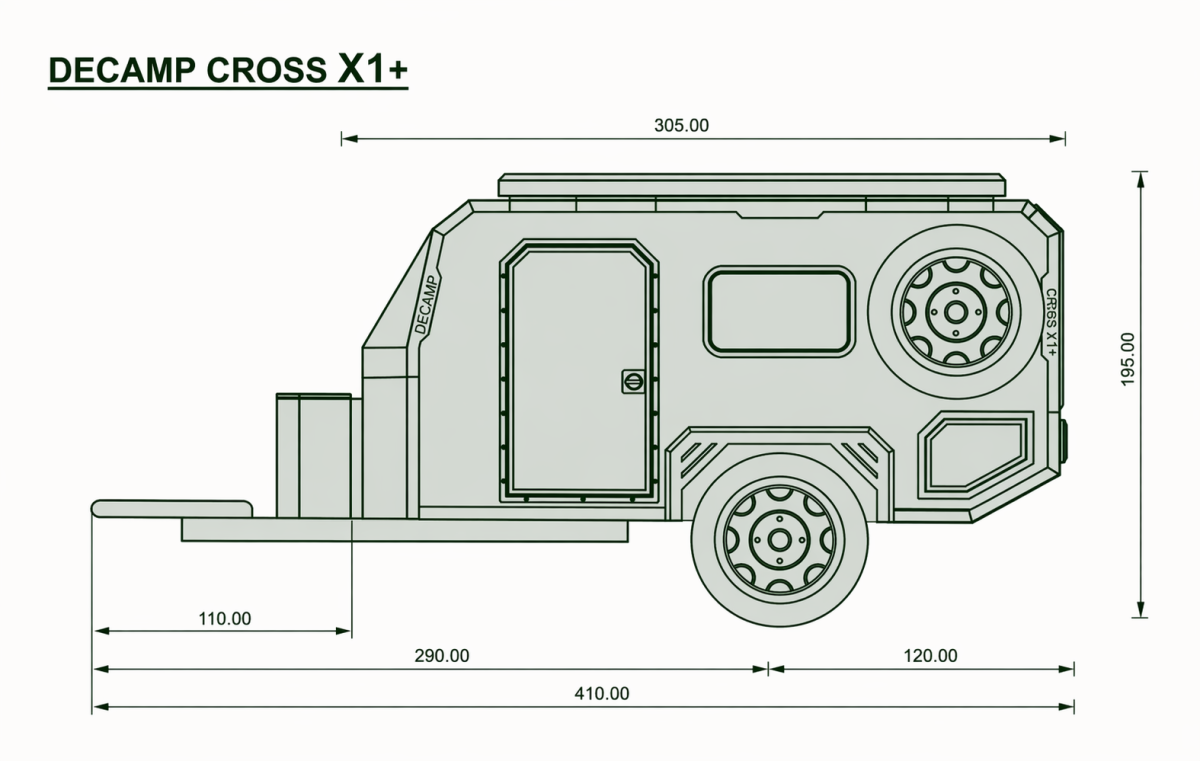

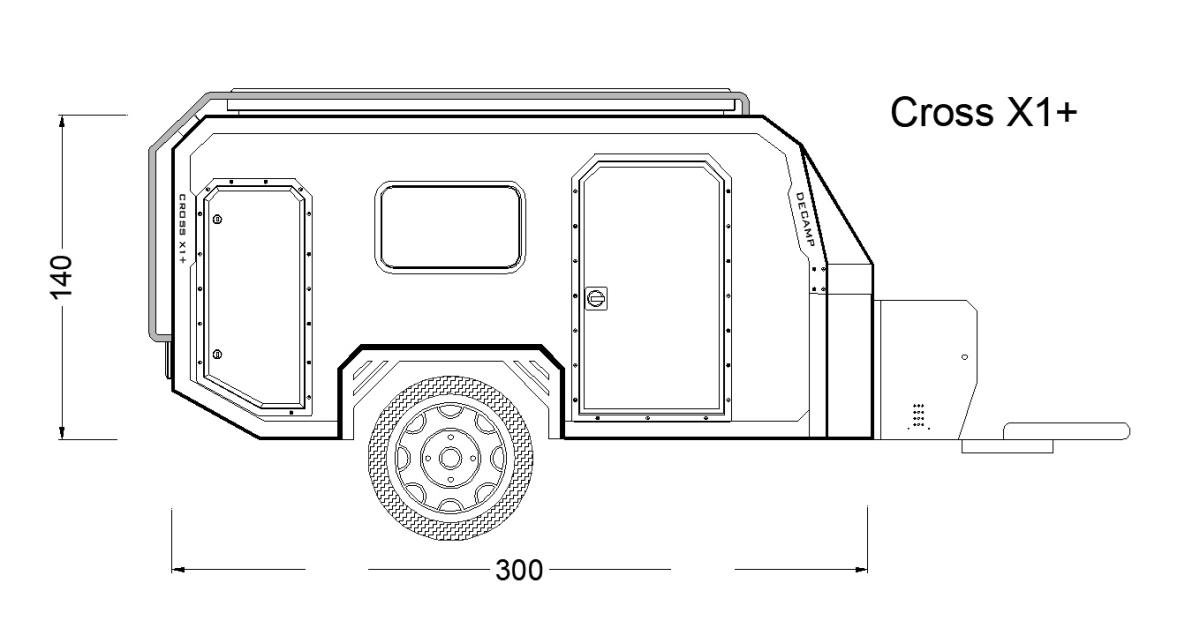

Right Side

Forced ventilation in the door
Entrance door with double locking
Sturdy grab handle for easier entry
**LED awning lighting**
Thule / Fiamma awning (optional)
Four 500 kg AL-KO heavy-duty stabilizer legs
**Insect screen with blackout on side window**
Plastic caravan windows (optional)
Lockable side cargo doors in the rear and front sections
245/75 R17 MT tires on off-road alloy rims
**245/75 R17 BF-Goodrich All Terrain tires on off-road alloy rims** (optional)
Fully galvanized trailer chassis
Electrostatic full-body powder coating

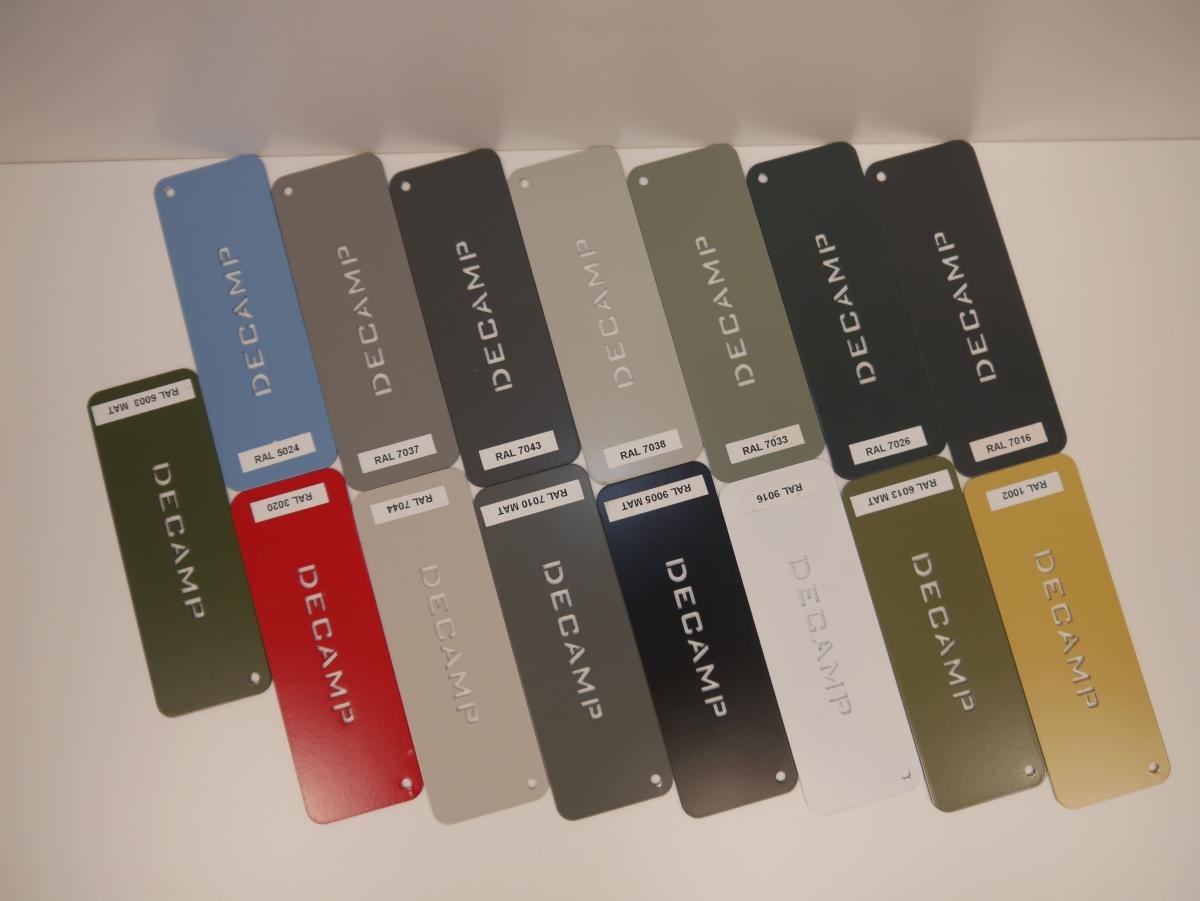

Color selection = RAL 1002 Sand Yellow, RAL 7010 Tent Grey, RAL 7037 Dust Grey, RAL 7043 Traffic Grey
**Walkable wheel arch box**

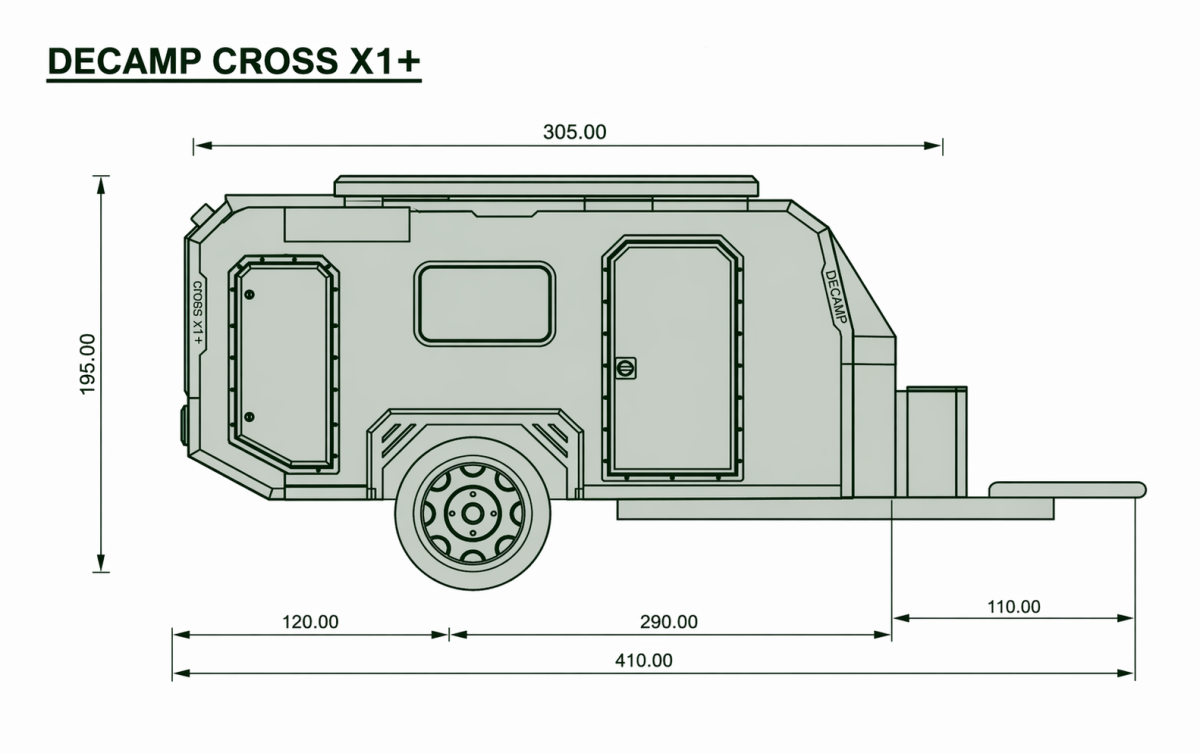

Left Side

Forced ventilation in the door
Entrance door with double locking
Sturdy grab handle for easier entry
Lockable **fresh water connection** for 105 liter water tank
**Outdoor shower connection** with mixer tap
Gray water tank 60 liters incl. drain tap (optional)
Four 500 kg AL-KO heavy-duty stabilizer legs
Insect screens with blackout on side windows
Plastic caravan windows (optional)
**Lockable side cargo doors**
**245/75 R17 MT tires** on off-road alloy rims
**245/75 R17 BF-Goodrich All Terrain tires** on off-road alloy rims (optional)
Fully galvanized trailer chassis
Electrostatic full-body powder coating
Color selection = RAL 1002 Sand Yellow, RAL 7010 Tent Grey, RAL 7037 Dust Grey, RAL 7043 Traffic Grey
**Spare wheel** (optional)

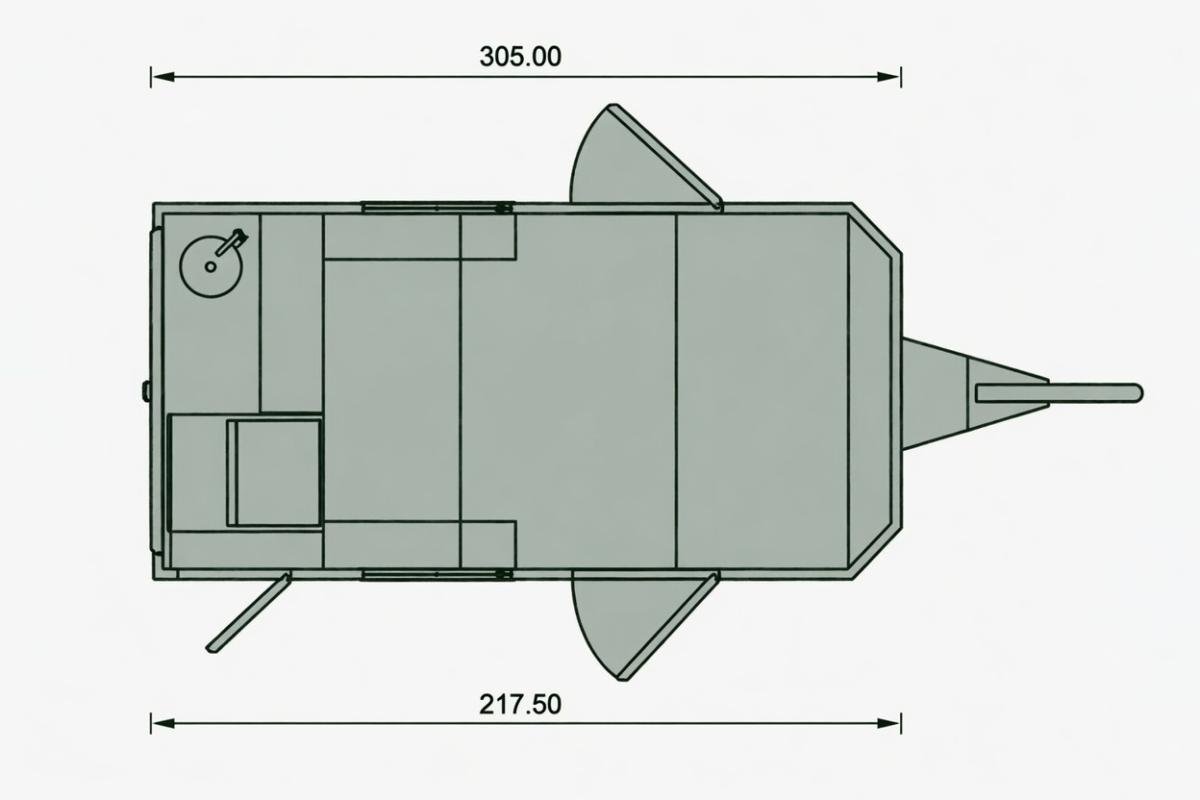

Roof

2-person bed in the pop-up roof with a sleeping area of 200 x 120 cm (optional)
40mm ceiling insulation
**150 Watt photovoltaic panel** (optional)
All-around roof rails
**Walkable roof**
Trailer ball head for bicycle carrier with attachment on the drawbar box (optional)

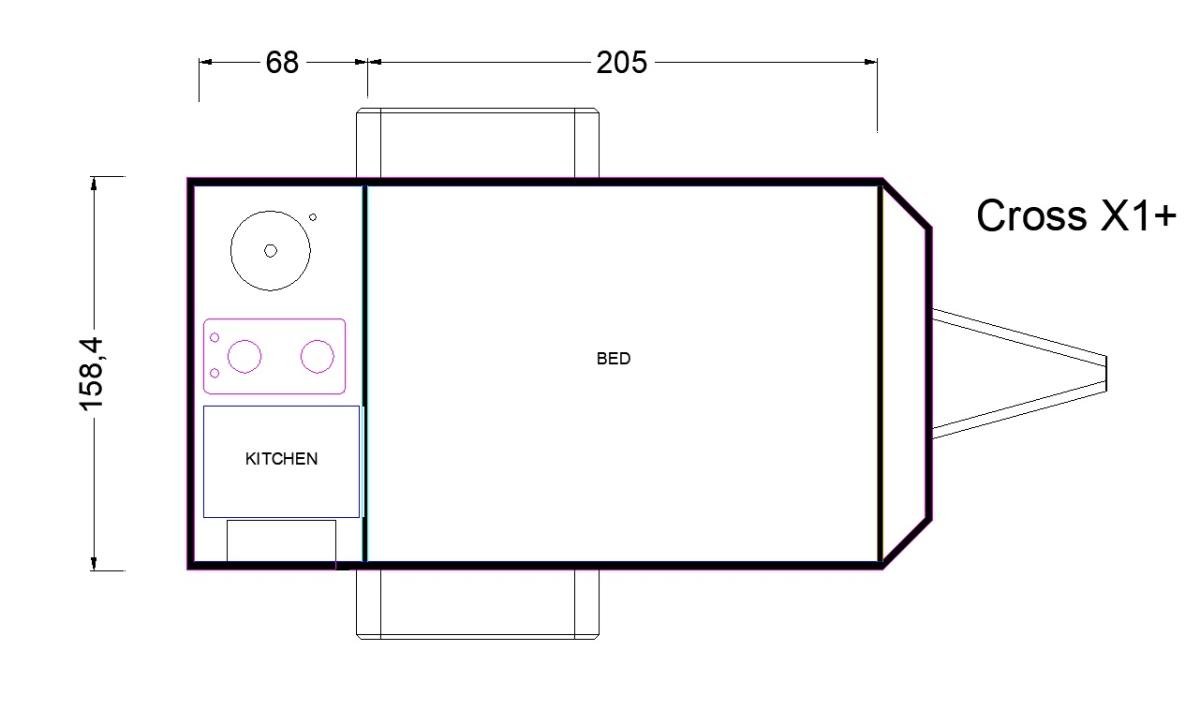

Interior

Sleeping area of 205 x 150 cm on 8 cm thick foam mattresses
Height with roof closed 140 cm, with roof open up to 240 cm
2-person bed in the pop-up roof with a sleeping area of 200 x 120 cm including steps for easier access
Child bed / bench with a sleeping/sitting area of 150 x 60 cm
40 mm wall and ceiling insulation
Floor insulation and underbody protection (optional)
Interior walls with faux leather application
LED interior lighting
Analog control panel
USB port / light switch / voltmeter / thermometer
12 V electrical installation
230 V electrical installation
105 liter fresh water tank
Pressurized water installation incl. water tank indicator
Hot water preparation (mandatory)
Hot water boiler (optional)
Insect screens with blackout on side windows
Secured cabinets
PVC floor coating
Eberspächer diesel air heater (optional)
